‘PIONEER COATS’ is a leading Paint manufacturer, who can supply quality paints to leading Bus Body builders in India.

Read More

Auto Component

We have exact and perfect coating solutions for all auto components .

Read More

Industrial Machine Sectors, Engines & Pumps

We can supply primers and paints for CNC Machines, Engines & Pumps

Read More

Power & Electric Sectors

We can supply primers and paints for Power & Electric Sectors

Read More

Steel Pre Structures

We can supply primers and paints for Steel Pre Structures & Grating

Read More

Wood Coatings

We can supply Wood Coatings, PUD Coatings for Wood

Read More

Pipes & Tubes

We can supply paints for industrial Pipes & Tubes

Read More

Vehicle Sectors Auto Component Industrial Machines Power & Electric Steel Structures Wood Coatings Pipes & Tubes

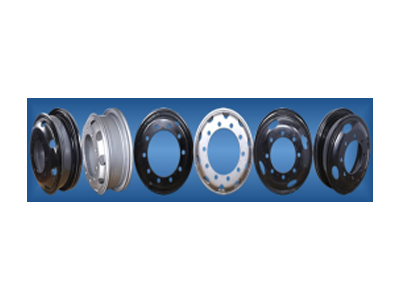

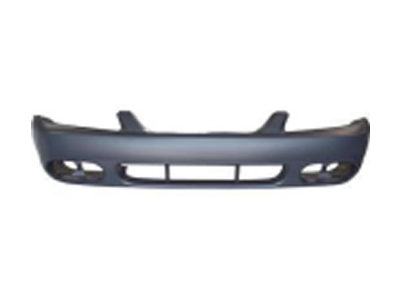

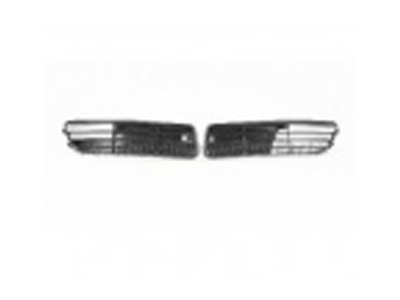

Auto Component Sectors

We have exact and perfect coating solutions for all auto components . All these products have excellent corrosion resistance and durability.

Auto Component Sectors Auto Component Sectors A) Commercial vehicle Sectors

A) Commercial vehicle Sectors A) Commercial vehicle Sectors A) Commercial vehicle Sectors

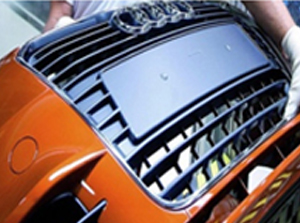

2K POLYURETHANE MONOCOAT  PAINT

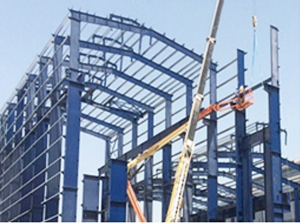

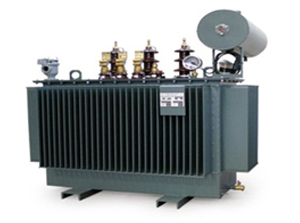

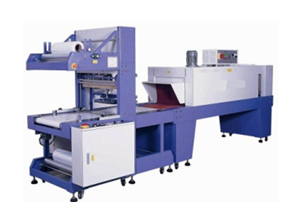

Specially designed to meet the specific requirement of durable anticorrosive property in single coat system for Steel Structure, large machinery (packaging Industries), Auto Component & Transformers.

PRODUCT SPECIFICATIONS :
  • Excellent adhesion
  • Scratch hardness passes for 2000 gm
  • D.F.T.  60 to 80 microns
  • 500-700  hours Salt Spray by ASTM B-117
  • 240 hours Humidity resistance
  • Good weathering properties

  • Less time for application • Cost effective product

A) Epoxy High Build Zinc Phosphate Structure Primer :

This is high performance high build primer specially designed for applying on fully built vehicle structures made of G.I. & Aluminum & is having excellent adhesion, corrosion resistance properties. It also has excellent covering capacity.
PRODUCT SPECIFICATIONS:
  • Excellent Corrosion Resistance
  • Excellent Adhesion and hardness
  • 300-500 hours salt spray
  • Excellent Flexibility

B) Synthetic Quick Drying Structure Primer :
This is high performance primer specially designed for applying on fully built vehicle structures made Mild Steel is  having excellent adhesion, good corrosion resistance properties. It also has faster drying properties.
PRODUCT SPECIFICATIONS:
  • Faster drying properties
  • Excellent Adhesion and hardness
  • 180 hours salt spray
  • Excellent Flexibility
  • Cost effective as compare to epoxy Structure primer

2K HIGH BUILD EPOXY MONOCOAT  PAINT
This paint is specially formulated as a High Build Single coat. It has excellent Adhesion, corrosion resistance properties and chemical resistance properties and it has very good hardness.
PRODUCT SPECIFICATIONS:
  • Excellent adhesion
  • Scratch hardness passes for 2000 gm
  • D.F.T.  60 to 80 microns
  • 500  hours Salt Spray by ASTM B-117
  • 240 hours Humidity resistance
  • Excellent Chemical Resistance
  • Cost effective in Epoxy Paints

TWO PACK WASH PRIMER YELLOW

Product Description :   Barrier Coat Primer
Recommended use : Galvanized steel surface and Aluminum surface
Features : • Excellent Adhesion Properties on G.I.
• Recoat ability with any type of Primer
Physical Properties :
Colour Shade Pale yellow
D.F.T. 5 to 8 microns
Theoretical spreading rate 80 to 90 sq. feet @ D.F.T. 05 to 8 μ
Flash point Base - 23° C ; Hardner - 28° C
Sp. Gravity Base 1.0 (± 0.05 ) kg per Ltr.
Hardner 0.90 (± 0.05) kg / Ltr
Surface Preparation : • Surface to be coated should be completely clean, dry and free from contamination.
• Remove oil & grease with suitable solvent or detergent
• Remove rust, mill scale and other loose material by wire mesh / abrasive blasting
Performance Properties : Excellent Adhesion on Galvanize / Aluminum / plated surface

Application :
Application Conditions

Ambient temperature shall be above 10°C and relative
humidity shall be below 85%. Adequate ventilation shall be
provided in confined spaces

Mixing Stir each component with mechanical stirrer before mixing
Mixing ratio Base : 1 part, Hardner : 1 part (by volume)
Application method By air assisted spray gun
Pot Life Minimum 4 hours at 30°C
(Pot life may be reduced at higher temperature)
Drying Time Surface Dry - 03 to 05 minutes
Touch Dry - 10 to 15 minutes
Over Coating Minimum - 2 hours maximum - 16 hours
Shelf Life Base : 6 months; Hardner : 6 months from the date of mfg


Request a Quote

2K POLYURETHANE GLOSSY PAINT

Product Description : 2K Polyurethane top Coat for Auto Refinishing
Recommended use : Automobile Products, Bus Body, Farm equipments & commercial vehicles
Features : • Excellent durability
• Smooth & glossy fin
Physical Properties :
Colour Shade As per customer requirement
Volume Solids 48 (± 3 %)
D.F.T.  30 to 40 microns
Theoretical Coverage 8 to 9 sq. meter @ D.F.T. 25-30 μ
Flash point      Base - 24° C ; Hardner - 28° C
Sp. Gravity Base 1.15 (± 0.1) kg / Ltr.
Hardner 1.05 (± 0.05) kg / ltr
Surface Preparation : • Surface to be coated should be completely clean , dry and free from contamination.
• Remove oil & grease with suitable solvent or detergent
• Remove rust, mill scale and other loose material by wire mesh / abrasive blasting
Performance Properties :

Accelerator Weathering Test : passes for minimum 750 hours
Salt Spray resistance  – passes 500 hours

Application :
Application Conditions Ambient temperature shall be above 10°C and relative
humidity shall be below 85%. Adequate ventilation shall be
provided in confined spaces
Mixing Stir each component with mechanical stirrer before mixing
Mixing ratio Paint : 4 parts, Hardner : 1 part , Thinner : 1 part (by volume)
Application method

By air assisted spray gun

Pot Life Minimum 5 hours at 30°C
(Pot life may be reduced at higher temperature)
Drying Time Surface Dry – 15 to 20 minutes
Touch Dry – 2 to 3 hours
Over coating interval Minimum 1 to 2 hours
Typical undercoat P.U. Primer
Shelf Life : Base : 12 months; Hardner : 6 months from the date of mfg.

Request a Quote

2K POLYUREHTHANE PRIMER SURFACER GREY

Product Description : 2K Polyurethane Primer
Recommended use : Automobile Products, Bus Body , Farm equipments & commercial vehicles
Features : • Excellent Adhesion & Flexibility
• Smooth & eggshell finish
• Good intercoat adhesion
Physical Properties :
Colour Shade Grey OR Buff
Volume Solids 45 (± 3 %)
D.F.T.  30 to 40 microns
Theoretical Coverage 8 to 9 sq. meter @ D.F.T. 25-30 μ
Flash point      Base - 24° C ; Hardner - 28° C
Sp. Gravity Base 1.35 (± 0.1) kg / Ltr.
Hardner 0.95 (± 0.05) kg / ltr
Surface Preparation : • Surface to be coated should be completely clean , dry and free from contamination.
• Remove oil & grease with suitable solvent or detergent
• Remove rust, mill scale and other loose material by wire mesh / abrasive blasting
Performance Properties :

Salt Spray resistance  – passes 500 hours for total system
Resistance to moisture – passes for 240 hours

Application :
Application Conditions

Ambient temperature shall be above 10°C and relative
humidity shall be below 85%. Adequate ventilation shall be
provided in confined spaces

Mixing

Stir each component with mechanical stirrer before mixing

Mixing ratio

Paint : 4 parts, Hardner : 1 part , Thinner : 1 part (by volume)

Application method

By air assisted spray gun

Pot Life Minimum 5 hours at 30°C
(Pot life may be reduced at higher temperature)
Drying Time Surface Dry – 15 to 20 minutes
Touch Dry – 1 to 1.5 hours
Over coating interval Minimum 8 hours
Typical undercoat P.U. Primer
Shelf Life : Base : 12 months; Hardner : 6 months from the date of mfg.

Request a Quote

HIGH PERFORMANCE STOVING PAINT

Product Description : Mono coat Stoving Paint
Recommended use : Auto components , Medical equipments &  steel Furniture
Features : • Mono coat system
• Excellent Adhesion
• Good flexibility
Physical Properties :
Colour Shade As per customer’s requirement
Volume Solids 48 (± 3 %)
D.F.T.  25 to 30 microns
Theoretical Coverage 8 to 9 sq. meter @ D.F.T. 25 μ
Flash point      23° C
Sp. Gravity 1.20 (± 0.1 ) kg per Ltr.
Surface Preparation : • Surface to be coated should be completely clean , dry and free from contamination.
• Remove oil & grease with suitable solvent or detergent
• Remove rust, mill scale and other loose material by wire mesh / abrasive blasting
Performance Properties :

Salt Spray – passes 150 hours for total system
Petrol- Diesel resistance - Passes

Application :
Application Conditions Ambient temperature shall be above 10°C and relative
humidity shall be below 85%. Adequate ventilation shall be
provided in confined spaces
Mixing Stir well with mechanical stirrer before application
Mixing ratio Paint :2 parts, Thinner : 1 part (by volume)
Application method By air assisted spray gun/ Electrostatic gun
Stoving schedule 150° C (± 5° C) for 15 minutes
Shelf Life : 12 months from the date of mfg.

Request a Quote

ONE PACK ZINC RICH GREY PRIMER

Product Description : Anticorrosive Epoxy one pack primer
Recommended use : Fabricated Steel Structures, Auto body –Commercial Vehicles & Auto
parts , Casting Components
Features : • High Performance Corrosion resistance
• Faster  drying properties
• Excellent Adhesion
Physical Properties :
Colour Shade Grey/ Red Oxide
Volume Solids 65 (± 3 %)
D.F.T.  25 to 30 microns
Theoretical Coverage 8 to 9 sq. meter @ D.F.T. 25 μ
Flash point      28° C
Sp. Gravity Base 1.75 (± 0.1 ) kg per Ltr
Surface Preparation : • Surface to be coated, should be completely clean , dry and free from contamination.
• Remove oil & grease with suitable solvent or detergent
• Remove rust, mill scale and other loose material by wire mesh / abrasive blasting
Performance Properties :

Salt Spray – passes 200 hours

Application :
Application Conditions Ambient temperature shall be above 10°C and relative
humidity shall be below 85%. Adequate ventilation shall be
provided in confined spaces
Mixing Stir well with mechanical stirrer before application
Mixing ratio Base : 3 parts, Thinner : 1 parts (by volume)
Application method By air assisted spray gun
Drying Time Surface Dry – 10 to 15 minutes
Touch Dry – 1 to 2 hours
Over coating interval Minimum 8 hours
Shelf Life : 12 months from the date of mfg.

Request a Quote
